Description

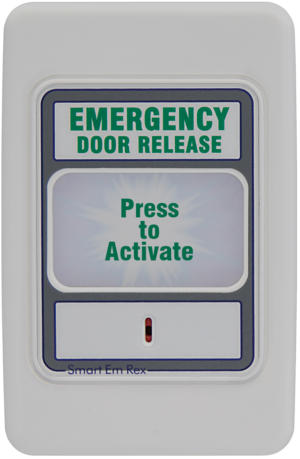

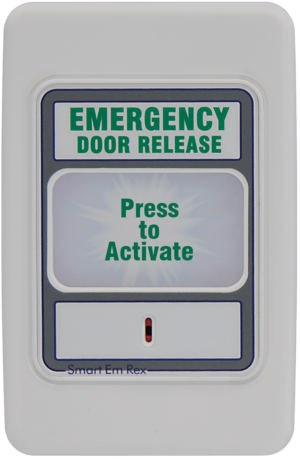

Smart Em Rex®
The Smart Em Rex® operates in the same way as the standard Em Rex® (Emergency Exit Device) but also includes LED Backlighting which allows both easy location and greater safety in emergencies involving areas of limited lighting. It also operates from 10 to 30Vdc.
Features
- Field re-settable unit, a reset tool is supplied with every unit
- No breaking of glass to operate
- Two outputs; one set to break lock power and one set for status monitoring
- Visual confirmation of activation
- An audible confirmation of activation
- Ancillary input for optional Em Rex Cover or remote operation of sounder
- Minimal moving parts
- LED backlit to enable easily locatable in areas of limited lighting
- C-Tick Certified and complies with BS 5839 Pt. The standard for "Break-Glass Panels"
Specifications
- Single gang profile fits a standard electrical flush box
- Power requirements 10 to 30Vdc
- 10mA at 13.6 Vdc
- Two sets Clean N/C outputs (Changes status upon activation)
- The contacts are rated at 1 Amp 30Vdc
- The faceplate will not deteriorate over time and is easily cleaned.
- C-Tick Certified & complies with RoHS and BS 5839 Pt 2. The standard for "Break-Glass Panels"
