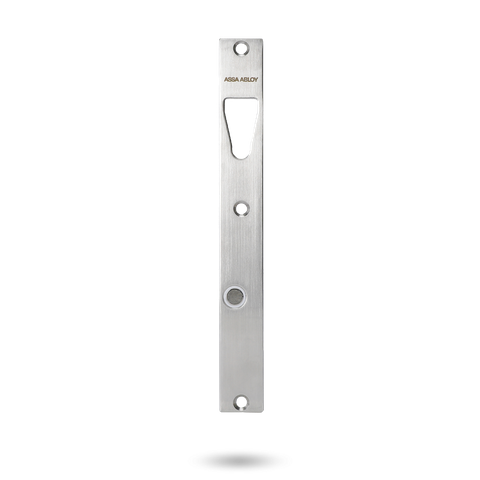

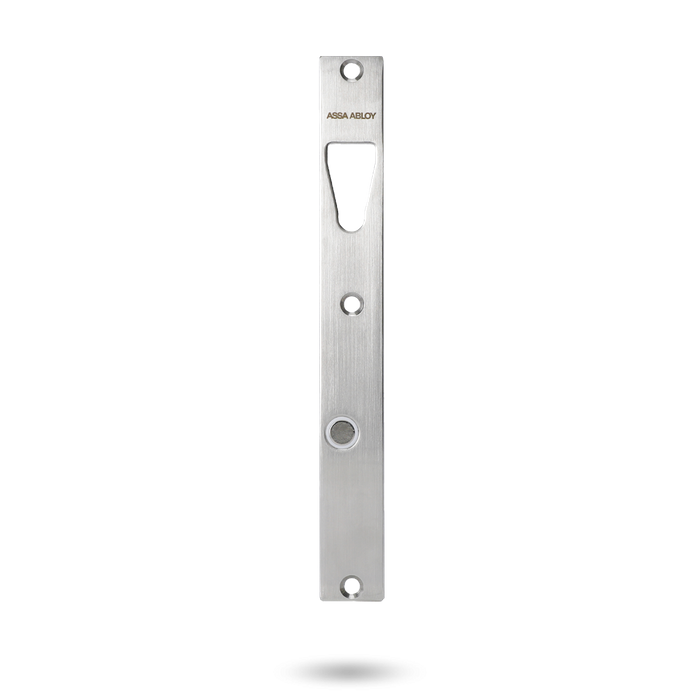

V-LOCK STRIKE PLATE - RETROFIT
Description
ASSA ABLOY ES8100 Series Electric Bolt Accessories
The ASSA ABLOY ES8100 Retrofit Strike Plate which can be used as a direct replacment for the ASSA ABLOY ES8000 Strike Plate when an ASSA ABLOY ES8100 replaces an ASSA ABLOY ES8000 V-Lock. An ASSA ABLOY ES8100 V-lock retrofit 27mm wide strike plate for use when replacing the older ES8000 model.
Designed and assembled in Australia, with patents pending in various countries, the ASSA ABLOY ES8100 incorporates many improvements over its predecessor, the ES8000, including a higher preload rating of 100kg, Door Position Monitoring, integrated LED lock status and diagnostics visual indication, increased door misalignment correction from 7mm to 12mm, an IP53 rating for external door applications and simple, one-step, PTO/PTL onsite configuration.
Note: Misalignment correction is reduced from 12mm to 7mm when using the Retrofit Strike Plate.
Note: The ES8100 strike provided with newer model is 30mm wide
