ES9000 12-30VDC PRELOAD MULTI
Description

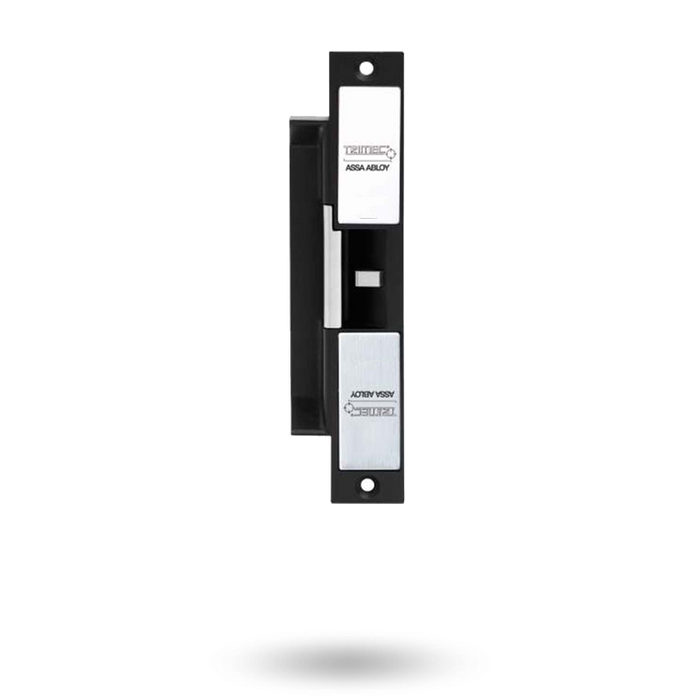

Trimec ES9000 Series Electric Strike
The ES9000 has been designed to suit the harshest commercial environments, and has the unique feature of the ability to operate with up to 25kg of pre-load pressure on the keeper. Pre-load is a common condition that is caused by pulling on a door before it unlocks, the weight of warped or drooping doors, seals on fire doors, or by differential air pressure created when heating and cooling systems are in use. Standard features include multi voltage 10 - 30Vdc and field changeable settings from fail safe to fail secure. Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today
Features
- Operates under pre-load up to 25kg
- Easy field selectable fail safe/fail secure
- Multi voltage 10Vdc to 30Vdc
- 1300kg holding force
- 2.5million cycles endurance rating
- Full monitoring
- Continuously Rated Solenoid
- Latch keeper is significantly quieter in operation
- Includes standard 15.5mm lip
- Mounting tabs as standard
- Non handed - field changeable to required configuration
- Australian designed and made
- Suplied in trade pack
Applications
Suitable for huigh traffic areas and where doors are subjected to side load (pre-load). Fire rated for fire door applications and suits open in or open out door installations. The ES9000 can be integrated into various access control systems.
Electrical
- 10Vdc to 30Vdc
- 250mA @12Vdc - 130mA @24Vdc
- Solenoid rated for continuous use
- Polarity and back EMF protected
Performance
- 680kg (1,500lbs) Static strength rating (UL 1034).
- 200,000 cycles endurance rating @ 25kg pre-load (based on EN12209, Grade Y)
- Suitable for 15mm latch with 3mm door gap
Monitoring
- Solenoid Monitor - 1 amp NO/NC microswitch
- Door/Latch Monitor - 1 amp NO/NC microswitch
Certification
- AS4145 2008. Compliant to the highest levels of strength and durability when used with an approved lockset.
- C-tick & CE compliant
- 4 hour fire rating, when used with approved door (in accordance with AS1905.1-1997, Part 1: Fire resistant Door sets)
