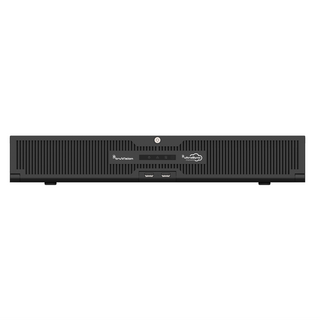

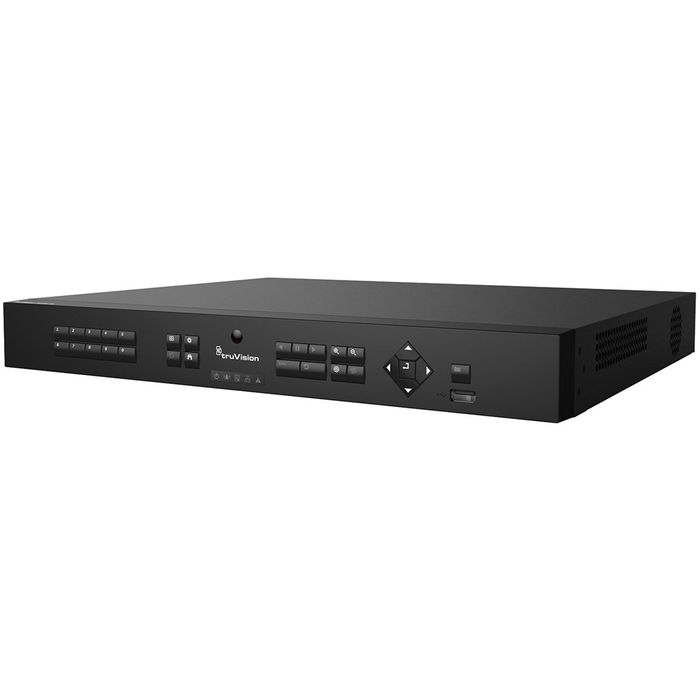

The TruVision® NVR 11 (TVN 11) is a cost effective, network video recorder with up to 16 built-in PoE ports designed to support video streams from IP video cameras. With a total of 80/160Mbps of incoming bandwidth available, the NVR 11 can support up to 16 cameras at HD resolution in real-time (30fps) and many other configurations. Flexible bandwidth allocation per channel allows users to maximize recording performance. In addition to browser, software and mobile device management tools, the familiar front panel controls allow for easy operation. For ease of camera installation, on-board PoE ports support up to 200 watts for 16-channel models, 120 watts for 8-channel models.
Features
Up to 8/16 Full HD cameras in real-time (30fps)
Supports 3rd-party cameras via ONVIF Profile S
TruVision VGA through 4K (8MPx) (indoor and outdoor)
TruVision 4, 8 and 16-channel encoders
PTZ and dome camera control via mouse, front panel and IR remote control
Up to 16 built-in PoE ports
Plug-and-play camera installation
Continuous, motion/alarm triggered or scheduled recording modes
Event recording
Fully compatible with TruVision Navigator software
Audio recording with capable IP cameras
Rack mountable – 1U (CS model is not rack mountable)
Local USB archiving
VGA and HDMI output for high-quality local viewing
